JACK PANELS
TT96K PATCHKIT SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
TTP96K PATCHKIT SERIES
TTP96K1FN

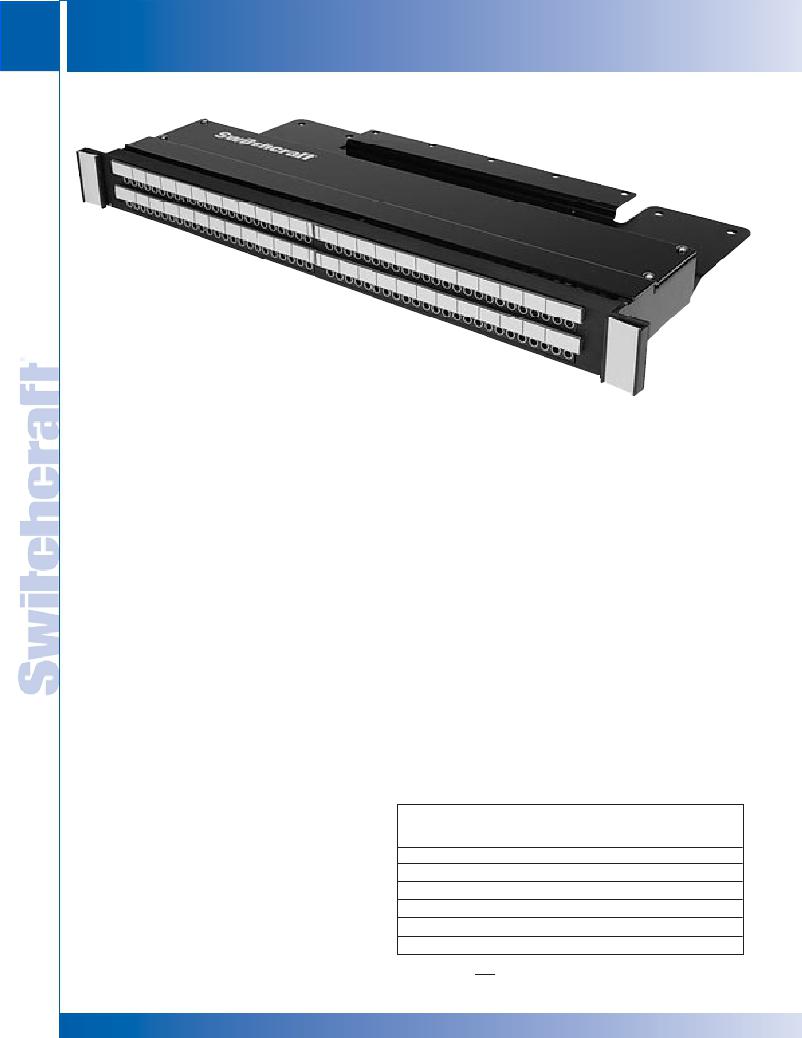

The TTP96K Patchkit Series offers the end user a rugged cable tray
to support rear cabling. Heavy duty construction takes weight off the
back of the jacks for increased reliability. Available in 1.75" or 3.5"
height versions.
FEATURES AND BENEFITS
? Kit features 96 TT jacks in one rack space
(1.75" high) or two rack spaces (3.5" high)
? Jack blocks can be removed from the front
for easy soldering
? Dust tray limits dirt, dust and contamination
of jack terminals
? Wire management straps are adjustable and reusable
? Attractive, corrosion resistant nickel-plated jacks
? Steel frame jack for superior jack life
? Extra wide labeling strips provide maximum space
? Rugged, attractive black anodized aluminum
face will not break or rust
? Three jack configurations available for the exact
switching arrangement you need: full normal,
half normal, and non-normal (open circuit)
? Fanned solder terminals for easier solder
connections
? Gold switching contacts for long-term reliability
in normal-through connections
PANEL
Front Channel: Black anodized aluminum
Frame: C.R.S. black epoxy painted
Designation Strips: Black polycarbonate 94V-0
Designation Strip Covers: Clear polycarbonate
Jack Inserts: Thermoplastic polyester
MECHANICAL
Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Environmental: 0°C to +50°C
ELECTRICAL
Contact Resistance: 30 milliohms maximum initial
Insulation Resistance: 10,000 megohms maximum
Dielectric Withstanding Voltage: 500VAC at 60 Hz
Working Voltage: 140VDC maximum
Current Rating: 100 milliamps
SPECIFICATIONS
MATERIALS
JACKS
Ordering Information
Part Type of
Number Jack
No. of
Jacks
Description
Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs: Nickel silver
with welded contacts
Assembly Screws: Nickel-plated steel
Welded Contacts: Gold alloy
TTP96K1FN
TTP96K1HN
TTP96K1NN
TTP96K3FN
TTP96K3HN
TTP96K3NN
TT
TT
TT
TT
TT
TT
96
96
96
96
96
96
1.75" High, full normals
1.75" High, half normal
1.75" High, no normals
3.5" High, full normals
3.5" High, half normals
3.5" High, no normals
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
